HP53/HP54 Pump
CAS No:

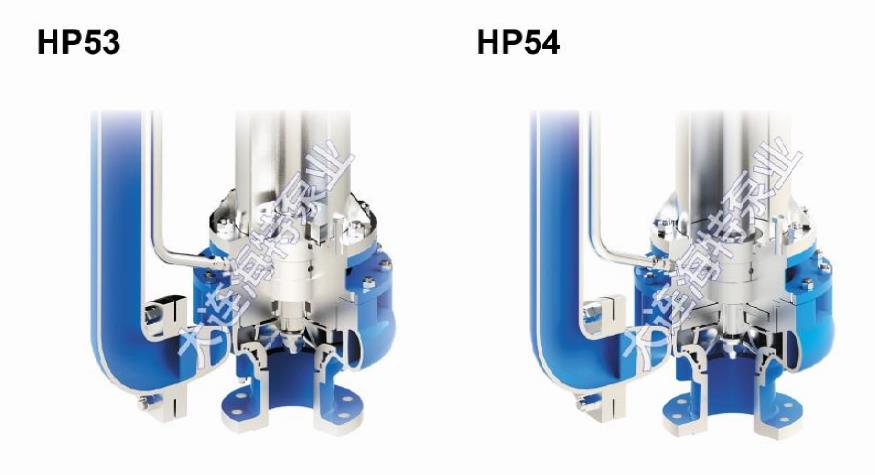

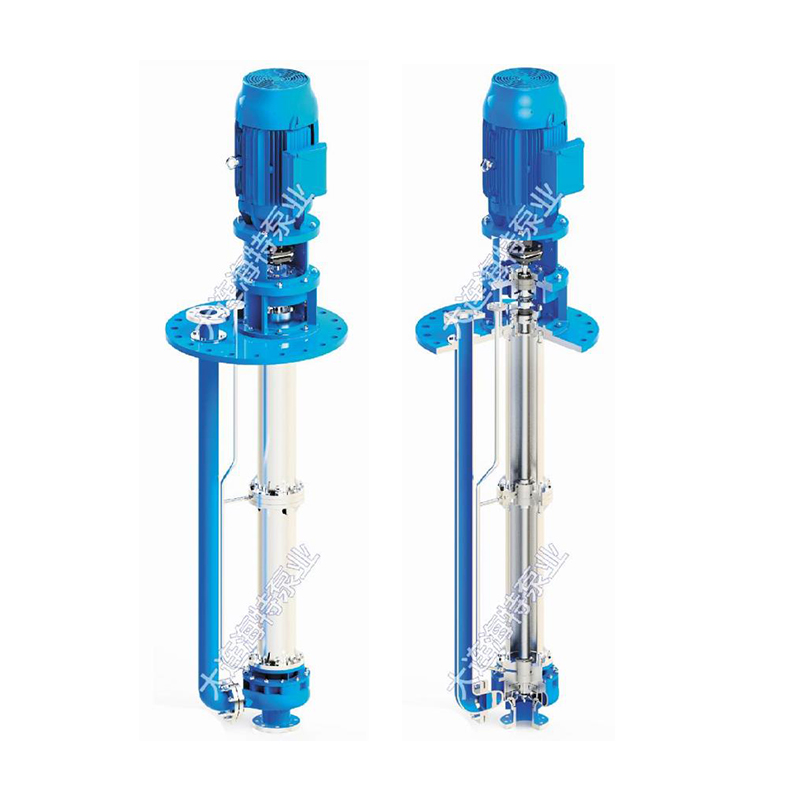

HP53/54 pumps are developed as single-stage, single-suction, submerged centrifugal pumps, with open
impeller (type HP53) and open impeller with expeller (type HP54), the shafts are supported with plain bearings in the pump casing and bearing spiders, out-lubrication is introduced in plain bearings, the overall length under base plate up to 10 m.
Pumps' design is in conformity with API 610 11th, and IS05199 standards. V-rings and packing or mechanical seals are available for delivering clean or contaminated liquids, with lttle particles or aggressive liquids.
Apply for chemical plants, power plants, sewage treatment plants, seawater pumping, and general industries.
Capacities 2~1000 m³/h
Heads 4~150 m
Temperatures -20~+120 C
Pressures 25 bar
Support OEM / ODM, please send your requirements to us.

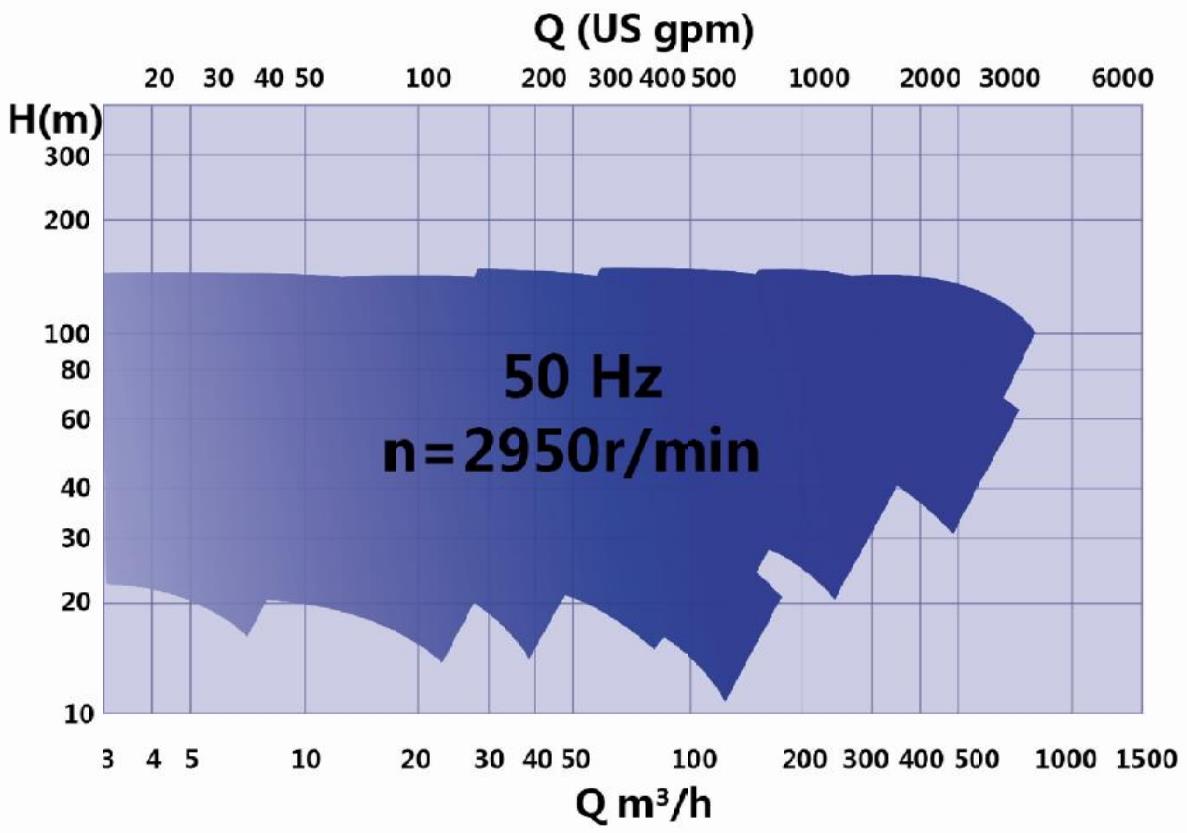

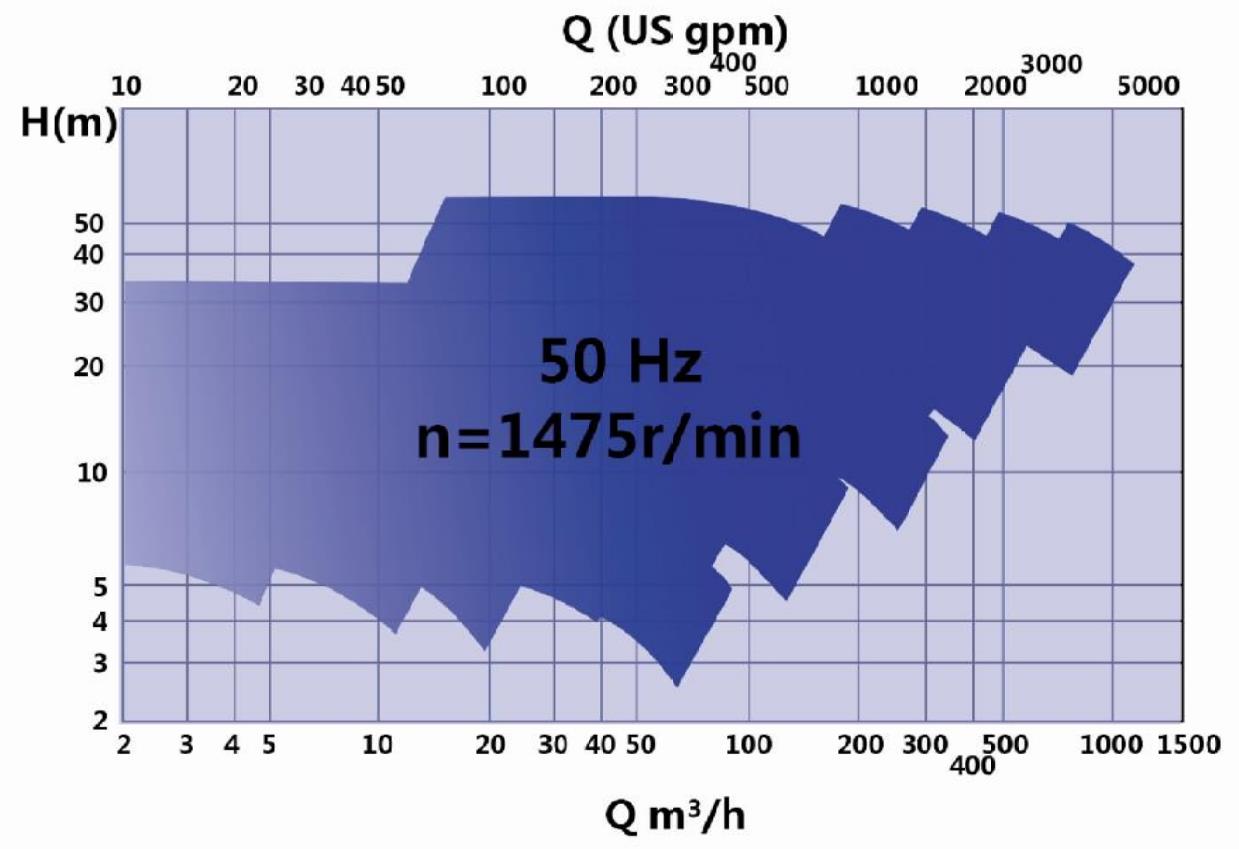

Performance| Range
